170362-1

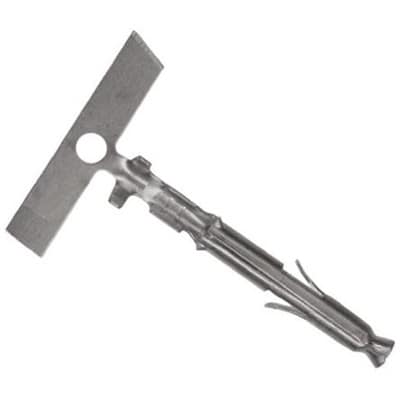

CONTACT, SOCKET, MINI-UNIVERSAL MATE-N-LOK, 22-18 AWG | TE Connectivity 170362-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 170362-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 170362-1
| Part Name | 170362-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Contact Retention Within Housing | With |
| Wire Type | Stranded |
| Circuit Application | Power |
| Barrel Type | Open Barrel |
| Wire/Cable Type | Discrete Wire |
| Crimp Area Plating Thickness | .8 |
| Operating Voltage (V) | 600 |
| For Use With | Plug Housing |
| Connector & Contact Terminates To | Wire & Cable |
| Wire Contact Termination Area Plating Material | Pre-Tin |
| VDE Tested | No |
| Contact Current Rating (Max) (A) | 7 |
| TE Internal Number | 170362-1 |
| UL Rating | Recognized |
| Connector System | Wire-to-Wire |
| Contact Orientation | Straight |
| Product Type | Contact |
| Wire Insulation Support | Without |
| UL File Number | E28476 |
| Operating Temperature Range | -4 – 221 |
| For Multiple Crimp | No |
| Packaging Method | Reel |
| Packaging Quantity | 4000 |
| Agency/Standard | UL |
| Contact Termination Area Plating Material | Pre-Tin |
| Accepts Wire Insulation Diameter Range | 3.4 |
| Contact Mating Area Plating Material | Pre-Tin |
| CSA Rating | Certified |
| RoHS | True |
| Contact Base Material | Brass |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| CSA File Number | LR 7189 |
| Contact Mating Area Plating Thickness | .8 |
| Termination Type | Crimp |
| Mating Pin Diameter | 1 |
| Contact Type | Socket |
| Contact Termination Area Plating Thickness | 31.49 |
| Wire Size | .3 – .89 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
